What Is A Muffler And Its Critical Role In Engine Performance

Definition and Core Function of a Muffler in Internal Combustion Engines

The core function revolves around converting high-amplitude sound waves into lower-energy vibrations through expansion chambers, baffles, and perforated pipes. These components work synergistically to disrupt the coherence of sound waves, preventing them from propagating outward. The efficiency of a muffler is quantified by its transmission loss (TL), measured in decibels (dB), which indicates the reduction in sound intensity at specific frequencies. High-performance mufflers achieve TL values exceeding 20–30 dB across critical frequency ranges (typically 50–2000 Hz), where human hearing is most sensitive.

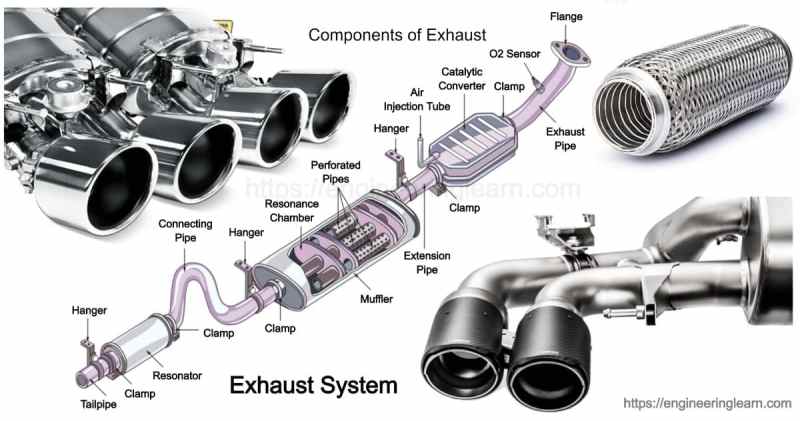

Technical Breakdown of Muffler Components and Their Roles in Noise Suppression

1. Expansion Chambers
   The most fundamental component, expansion chambers rely on the acoustic impedance mismatch principle to reflect and cancel sound waves. When exhaust gases enter a larger chamber, the sudden change in cross-sectional area causes pressure waves to reflect backward, interfering destructively with incoming waves. This phenomenon, known as standing wave interference, is most effective at mid-to-high frequencies. The chamber’s length and volume are mathematically optimized using the Helmholtz resonator formula:

   f = (c / 2π) × √(A / V × L) Where:

   • f = Resonant frequency (Hz)
   • c = Speed of sound in exhaust gas (~343 m/s at 20°C)
   • A = Cross-sectional area of the neck (m²)
   • V = Volume of the chamber (m³)
   • L = Effective length of the neck (m)

   Multi-chamber designs (e.g., reverse-flow or concentric mufflers) enhance suppression by creating sequential reflections, targeting broader frequency ranges.
2. Baffles and Perforated Pipes
   Baffles are sound-absorbing panels or perforated metal sheets positioned within the chamber to scatter sound waves and increase path length. Their placement disrupts wave coherence, converting directional sound into diffuse, lower-amplitude vibrations. Perforated pipes, often coated with basalt fiber or mineral wool, absorb sound energy through frictional damping as gases pass through the holes. The perforation ratio (typically 10–30% open area) and hole diameter (0.5–3 mm) are engineered to balance flow resistance with acoustic absorption.
3. Resonators and Side Branches
   Side-branch resonators (e.g., quarter-wave or Helmholtz resonators) are tuned to specific frequencies by adjusting the branch length and diameter. They function as narrowband filters, suppressing dominant noise frequencies (e.g., engine order harmonics) while allowing others to pass. Diesel engines, which produce low-frequency rumble, often incorporate large-volume resonators with tuned lengths to target <200 Hz frequencies, where gasoline engines are less problematic.

Z = ρ × c Where:

• ρ = Gas density (varies with temperature and composition)
• c = Speed of sound in the medium

Mismatches in impedance between the exhaust pipe, chambers, and ambient air create reflections that interfere with sound waves, reducing their amplitude.

Comparison of Muffler Function in Gasoline vs. Diesel Engines

1. Exhaust Gas Properties and Noise Signature
   Gasoline engines produce high-frequency noise (primarily >500 Hz) due to rapid combustion cycles and smaller cylinder volumes. Diesel engines, with their compression-ignition process, generate low-frequency rumble (dominant <200 Hz) and broadband turbulence noise from higher exhaust velocities. This necessitates:
   • Gasoline mufflers: Focus on multi-chamber designs with fine-perforation absorbers to target mid-to-high frequencies.
   • Diesel mufflers: Utilize larger chambers, heavier baffles, and tuned resonators to address low-frequency resonance and structural vibrations.
2. Material Selection and Durability
   Diesel exhaust gases are hotter (up to 700°C) and contain higher particulate concentrations, requiring:
   • Stainless steel or aluminized steel for chambers and baffles to resist corrosion and thermal fatigue.
   • Ceramic fiber linings in high-performance diesel mufflers to enhance thermal insulation and acoustic absorption.
   • Gasoline mufflers: Often use galvanized steel or coated carbon steel, as exhaust temperatures are lower (~500°C) and less abrasive.
   Diesel mufflers also incorporate soot traps or catalytic converters in modern designs to mitigate particulate emissions, adding complexity to the acoustic path.
3. Design and Flow Dynamics
   The exhaust pulse frequency (directly tied to engine RPM) dictates muffler tuning:
   • Gasoline engines: Use shorter, multi-chamber mufflers with smaller diameters to minimize backpressure at high RPM. Example: A 4-cylinder gasoline engine at 6000 RPM generates exhaust pulses at 100 Hz intervals, requiring chambers tuned to harmonics of 100 Hz (e.g., 200 Hz, 300 Hz).
   • Diesel engines: Employ longer, single-chamber or reverse-flow designs with larger volumes to dampen low-frequency pulses. Example: A 6-cylinder diesel engine at 2000 RPM produces pulses at ~33 Hz, necessitating chambers with resonant lengths of ~5 meters (or equivalent tuned resonators) to suppress sub-200 Hz frequencies.
4. Regulatory and Performance Trade-offs
   Diesel mufflers must comply with strict noise limits (e.g., EU Stage V or EPA Tier 4) while maintaining torque output, often requiring active noise cancellation (ANC) systems in heavy-duty applications. Gasoline mufflers prioritize lightweight designs for passenger vehicles, using micro-perforated tubes and acoustic foam to reduce weight without sacrificing suppression.

Text-Based Diagram: Internal Structure of a Reverse-Flow Muffler

+---------------------+
| |
| EXHAUST INLET | (1)
| |
+----------+----------+
|
v
+----------+----------+
| |
| PRIMARY CHAMBER | (2)
| (Expansion Zone) |
| |
+----------+----------+
|
v
+----------+----------+----------+
| | |
| PERFORATED PIPE | (3) | (4)
| (Acoustic Absorber)| | BAFFLE
| | |
+----------+----------+----------+
|
v
+----------+----------+
| |
| SECONDARY CHAMBER | (5)
| (Reverse Flow)

Types and Variations of Mufflers in Internal Combustion Engines

Structural Classification and Ideal Applications

Core Design Principles:

Acoustic Absorption: Dissipates sound energy through fibrous or porous materials.

Reflective Cancellation: Uses chambers to create destructive sound wave interference.

Flow Dynamics: Minimizes backpressure to maintain exhaust efficiency.

1. Straight-Through (Tube) Mufflers
   Description: Feature a continuous internal tube with minimal chambers, relying on perforations or baffles for noise reduction. Often constructed from stainless steel or aluminized steel for durability.
   Structural Traits:
2. Minimal internal obstructions to reduce backpressure.
3. Perforated outer shells or internal baffles to scatter sound waves.
Ideal Use Cases:
4. High-performance vehicles (e.g., muscle cars, sports sedans) where exhaust flow is prioritized.
5. Off-road applications requiring unobstructed exhaust paths.
Trade-offs: Lower noise attenuation compared to chambered designs; limited tuning flexibility.
6. Chambered Mufflers
   Description: Incorporate one or more internal chambers separated by baffles, creating reflective surfaces to cancel sound waves. Common in OEM designs for passenger vehicles.
   Structural Traits:
7. Multiple chambers with varying volumes to target specific frequency ranges.
8. Often combined with packing materials (e.g., fiberglass, mineral wool) for absorption.
Ideal Use Cases:
9. Daily-driving sedans and SUVs where noise reduction is critical.
10. Hybrid vehicles requiring balanced exhaust acoustics and fuel efficiency.
Trade-offs: Increased backpressure may reduce engine power; heavier than straight-through designs.
11. Glasspack Mufflers
    Description: Utilize a perforated inner tube surrounded by a packed chamber filled with ceramic fiber or glass wool, offering superior absorption without reflective chambers.
    Structural Traits:
12. High-temperature-resistant materials (e.g., stainless steel shells, ceramic fiber).
13. Seamless integration with catalytic converters or oxygen sensors.
Ideal Use Cases:
14. Modern gasoline and diesel vehicles (e.g., BMW, Mercedes-Benz) where strict emissions and noise regulations apply.
15. Performance-oriented applications (e.g., turbocharged engines) requiring compact, efficient designs.
Trade-offs: Higher cost; potential for fiber degradation over time if exposed to moisture.
16. Turbocharged/Performance Mufflers
    Description: Engineered for forced-induction systems, these mufflers prioritize exhaust scavenging and reduced backpressure to enhance turbocharger efficiency.
    Structural Traits:
17. Large-diameter pipes and minimal restrictive components.
18. Often feature adjustable baffles or variable geometry to optimize flow at different RPM ranges.
Ideal Use Cases:
19. Turbocharged passenger cars (e.g., Volkswagen GTI, Ford Focus ST).
20. Racing applications where exhaust flow directly impacts power output.
Trade-offs: Noise levels may exceed legal limits without additional sound-dampening layers.

Aftermarket vs. OEM Muffler Designs: Performance and Regulatory Considerations

Key Differentiators:

OEM Mufflers: Optimized for mass production, balancing cost, emissions, and noise regulations.

Aftermarket Mufflers: Tailored for performance, customization, or regulatory bypass (e.g., "straight-pipe" conversions).

1. Performance Trade-offs
   Aftermarket Advantages:
2. Reduced backpressure improves engine breathing, particularly in turbocharged or high-RPM applications.
3. Customizable sound profiles (e.g., aggressive growl for muscle cars, linear tone for performance sedans).
OEM Advantages:
4. Engineered for longevity with materials resistant to thermal and vibrational stress.
5. Pre-validated for emissions and noise compliance in specific markets.
6. Noise and Legal Compliance
   Aftermarket Considerations:
7. Modifications may violate local noise ordinances (e.g., decibel limits in urban areas).
8. Some regions require muffler certification (e.g., EPA or CARB approval in the U.S.).
OEM Considerations:
9. Designed to meet stringent noise standards (e.g., EU Type Approval, NHTSA regulations).
10. Often integrated with emission control systems (e.g., catalytic converters, diesel particulate filters).
11. Durability and Maintenance
    Aftermarket Risks:
12. Inferior materials (e.g., thin-gauge steel) may corrode or fail prematurely.
13. Lack of warranty coverage compared to OEM parts.
OEM Benefits:
14. Standardized manufacturing processes ensure consistency.
15. Access to genuine replacement parts and technical support.

Comparative Analysis of Muffler Types

Specialized Mufflers for Unique Vehicle Applications

1. Motorcycle Mufflers
   Design Adaptations:
2. Compact, lightweight constructions using aluminum or titanium to reduce unsprung mass.
3. Integrated expansion chambers to amplify exhaust note without excessive backpressure.
Examples:
4. Canister Mufflers: Used in cruisers (e.g., Harley-Davidson) for deep, resonant tones.
5. Linear Mufflers: Found in sport bikes (e.g., Yamaha YZF-R1) for high-RPM clarity.
6. Racing and High-Performance Vehicles
   Design Adaptations:
7. Minimalist designs with straight pipes or perforated chambers to maximize exhaust velocity.
8. Use of high-temperature alloys (e.g., Inconel) to withstand extreme thermal loads.
Examples:
9. Drag Racing Mufflers: Often feature adjustable baffles to fine-tune power bands.
10. NASCAR Mufflers: Homologated for compliance while optimizing exhaust scavenging.
11. Electric Vehicle (EV) and Hybrid




    Materials and Manufacturing in Muffler Construction

    Mufflers in internal combustion engines undergo rigorous demands, requiring materials that balance durability, thermal resistance, and acoustic performance while withstanding environmental degradation. The selection of materials and manufacturing processes directly influences a muffler’s efficiency, lifespan, and compliance with emission standards. Below, the key materials, fabrication techniques, and protective treatments are examined, alongside environmental challenges and maintenance strategies to preserve performance.


    Common Materials in Muffler Construction and Their Properties

    The choice of material for muffler construction is dictated by factors such as heat resistance, corrosion resistance, weight, and cost. The most widely used materials include:

    - Stainless Steel (AISI 304, 409, 439)


12. Properties: High corrosion resistance due to chromium content (typically 10–26%), excellent heat resistance (operating temperatures up to 900°C), and durability under oxidative conditions. AISI 409 is cost-effective but less resistant to high temperatures compared to AISI 304.
13. Applications: Dominates automotive and heavy-duty mufflers where longevity and resistance to rust are critical.
14. Limitations: Higher cost than mild steel, though significantly lower than titanium or exotic alloys.

- Mild Steel (Carbon Steel)


15. Properties: Affordable, malleable, and suitable for low-stress applications. Requires protective coatings (e.g., zinc galvanization) to prevent rust in humid or salty environments.
16. Applications: Common in budget-oriented or non-performance mufflers, often paired with powder-coating for added protection.
17. Limitations: Prone to corrosion, limiting lifespan in harsh conditions.

- Aluminum Alloys (e.g., 6061, 3003)


18. Properties: Lightweight (reducing overall vehicle weight by 10–20%), good thermal conductivity, and resistance to corrosion. However, aluminum’s melting point (~660°C) restricts use in high-performance engines where exhaust temperatures exceed 800°C.
19. Applications: Preferred in racing or high-end performance vehicles where weight reduction is prioritized over extreme heat resistance.
20. Limitations: Requires anodizing or specialized coatings to prevent oxidation at high temperatures.

- Fiberglass and Composite Materials


21. Properties: Used primarily for sound-absorbing linings, offering acoustic damping without adding significant weight. Resistant to moisture but degrade at temperatures above 250°C.
22. Applications: Inner linings of mufflers to reduce noise transmission while maintaining structural integrity of the outer shell.
23. Limitations: Not suitable for direct exposure to exhaust gases; requires encapsulation in metal or ceramic housings.

- Ceramic Coatings (e.g., Yttria-Stabilized Zirconia, YSZ)


24. Properties: High thermal resistance (up to 1,400°C), lightweight, and chemically inert. Used as coatings to protect metal substrates from heat-induced degradation.
25. Applications: High-performance exhaust systems (e.g., turbocharged or diesel engines) where exhaust temperatures exceed 900°C.
26. Limitations: Brittle and expensive; requires precise application to avoid cracking.

- Titanium


27. Properties: Exceptional strength-to-weight ratio, corrosion resistance, and heat tolerance (up to 1,600°C). Rarely used due to high cost.
28. Applications: Niche high-performance or aerospace applications where weight savings and extreme durability are critical.

Manufacturing Process Overview

The production of a muffler involves multiple stages, from material preparation to acoustic treatment. The process ensures structural integrity, thermal management, and optimal sound attenuation. Key steps include:

- Material Preparation and Cutting
Metal sheets (steel, aluminum, or titanium) are precision-cut using laser cutting, plasma cutting, or CNC punching to achieve the required muffler geometry. Tolerances are typically maintained within ±0.5 mm to ensure proper assembly.

- Stamping and Forming
Metal blanks are stamped into cylindrical or conical shapes using hydraulic presses or roll-forming machines. Aluminum and stainless steel may require annealing (heat treatment) to improve formability without cracking.

- Welding and Assembly
Components are joined using MIG (GMAW), TIG (GTAW), or spot welding, with stainless steel often requiring argon shielding to prevent oxidation during welding. High-strength welds are critical to prevent exhaust leaks, which can degrade performance and increase noise.

- Acoustic Treatment and Sound-Dampening


29. Fiberglass or Mineral Wool Packing: Installed within the muffler’s chambers to absorb high-frequency noise. Density ranges from 30–100 kg/m³, with higher densities offering better attenuation but increasing backpressure.
30. Perforated Pipes and Baffles: Stainless steel pipes with 0.5–2 mm perforations are used to direct exhaust flow while allowing sound waves to dissipate. Baffles (internal plates) are welded at angles to create turbulence, further reducing noise.

- Heat Shielding and Insulation
Ceramic fiber blankets or aluminized steel wraps are applied to external surfaces to reflect radiant heat, protecting surrounding components and reducing cabin heat buildup. This step is critical in diesel engines where exhaust temperatures can exceed 700°C.

- Quality Control and Testing


31. Leak Testing: Mufflers are pressurized with air (5–10 psi) and submerged in water to detect weld failures.
32. Acoustic Testing: Measured in dB(A) to ensure compliance with noise regulations (e.g., EPA or EU standards). Typical passenger vehicle mufflers operate within 70–90 dB(A).
33. Thermal Cycling: Simulates real-world conditions by exposing mufflers to rapid temperature fluctuations (e.g., -40°C to 900°C) to test material integrity.

Role of Coatings in Muffler Performance and Longevity

Coatings serve dual purposes: protecting the muffler from environmental degradation and enhancing acoustic or thermal properties. The selection of coating depends on the operating environment and performance requirements.

- Ceramic Coatings


34. Function: Applied via plasma spray or thermal spraying to metal substrates, ceramic coatings (e.g., zirconia) create a thermal barrier, reducing heat transfer to the outer shell by 30–50%.
35. Benefits: Extends the lifespan of underlying metals in high-temperature applications, such as diesel exhaust systems.
36. Drawbacks: Adds 5–10% weight and requires specialized application to avoid delamination.

- Sound-Dampening Coatings


37. Function: Viscoelastic materials (e.g., bitumen-based or polymer coatings) are applied to internal surfaces to absorb vibrations and high-frequency noise.
38. Benefits: Reduces structure-borne noise without significantly increasing backpressure. Common in luxury vehicles where cabin quietness is prioritized.
39. Drawbacks: Degrades over time with exposure to exhaust gases, requiring replacement every 50,000–100,000 km.

- Corrosion-Resistant Coatings


40. Zinc Galvanization: Immersion in molten zinc creates a protective layer (~50 µm thick), extending the life of mild steel mufflers in corrosive environments (e.g., coastal regions).
41. Powder Coating: Epoxy or polyurethane coatings provide a smooth, durable finish resistant to UV degradation and minor abrasions. Applied electrostatically for even coverage.
42. Anodizing (Aluminum): Converts the surface to aluminum oxide, improving corrosion resistance and adhesion for additional coatings.

- Thermal Barrier Coatings (TBCs)


43. Function: Used in high-performance exhaust systems, TBCs (e.g., YSZ) reduce metal substrate temperatures by 100–200°C, delaying material fatigue.
44. Application: Common in turbocharged engines where exhaust temperatures exceed 950°C.

Environmental Factors Affecting Muffler Degradation and Maintenance Strategies

Mufflers operate in harsh conditions, subject to thermal cycling, chemical exposure, and mechanical stress, which accelerate wear. Below are the primary degradation factors and corresponding mitigation strategies:

- Corrosion


45. Causes: Moisture, road salt (in winter climates), and exhaust condensate (containing sulfuric acid from fuel combustion).
46. Affected Materials: Mild steel (most vulnerable), aluminum (pitting corrosion), and stainless steel (chloride-induced stress corrosion).
47. Maintenance:
48. Regular Inspection: Check for rust spots, pitting, or discoloration during routine vehicle maintenance (every 15,000–20,000 km).
-


Performance Impact and Modifications in Muffler Systems

Muffler modifications are a critical aspect of vehicle performance tuning, influencing not only exhaust sound but also engine efficiency, power output, and emissions compliance. While often perceived as purely aesthetic upgrades, alterations to muffler design—such as removing restrictive baffles, integrating resonators, or optimizing flow dynamics—directly impact exhaust backpressure, scavenge effect, and thermal management. Engine dynamometer testing and real-world applications demonstrate measurable changes in horsepower, torque, and throttle response, particularly in high-performance and modified vehicles. However, these modifications must balance performance gains with legal constraints, including noise ordinances and emissions regulations, which vary significantly by region. Understanding the trade-offs between power, sound, and compliance is essential for both enthusiasts and professionals in automotive engineering.


Exhaust Backpressure and Engine Performance Relationship

Exhaust backpressure is the resistance the engine encounters when expelling combustion gases, and it plays a pivotal role in determining power output and efficiency. A properly designed muffler minimizes backpressure while still attenuating noise, allowing the engine to breathe more freely. When backpressure is excessive—due to overly restrictive muffler designs or clogged catalytic converters—the engine must work harder to expel exhaust gases, leading to reduced volumetric efficiency and lower power. Conversely, reducing backpressure through modifications such as straight-pipe installations or high-flow mufflers can increase horsepower by improving exhaust scavenging, though this often comes at the cost of increased noise and potential emissions non-compliance.

Key performance metrics affected by backpressure modifications include:


49. Horsepower (HP): Lower backpressure allows the engine to spin faster and produce more power, particularly at higher RPMs. For example, replacing a stock muffler with a high-performance unit in a Ford Mustang GT can yield a 5–15 HP gain, depending on the engine’s tuning and the modification’s design.
50. Torque: Improvements in torque are more noticeable at lower RPM ranges, where exhaust flow restrictions are more pronounced. A study on a Chevrolet Silverado 1500 with a turbocharged 6.2L V8 showed a 10–15 lb-ft torque increase after installing a less restrictive muffler system.
51. Fuel Efficiency: Paradoxically, reducing backpressure can sometimes improve fuel economy in naturally aspirated engines by optimizing combustion efficiency. However, in forced-induction applications, excessive backpressure reduction may lead to pumping losses and reduced efficiency.

"Exhaust backpressure is not merely a function of muffler design but also depends on the entire exhaust system’s geometry, including pipe diameter, bends, and catalytic converter efficiency. A 10% reduction in backpressure can translate to a 3–7% increase in peak horsepower in high-RPM applications, but the gains diminish in daily-driving scenarios where lower RPM efficiency dominates."

Modification Techniques and Their Effects

Muffler modifications range from subtle tuning adjustments to aggressive performance upgrades, each with distinct impacts on engine behavior and exhaust characteristics. Below are common techniques and their documented effects:

• Baffle Removal or Reduction: Removing or thinning baffles in a muffler reduces backpressure but significantly increases noise levels. In a Dodge Challenger R/T with a 6.4L Hemi, removing baffles from the stock muffler resulted in a 10–15 dB increase in exhaust noise while adding 8–12 HP at the wheels. However, this modification often violates noise ordinances in urban areas, where decibel limits are strictly enforced (e.g., 92 dB at 50 feet in many U.S. states).
• Resonator Addition or Replacement: Resonators are tuned to cancel specific frequency ranges of exhaust noise without severely restricting flow. Installing an aftermarket resonator in a Toyota Tacoma with a 4.0L V6 reduced exhaust drone by 5–8 dB while maintaining 95% of the stock torque curve. High-performance resonators, such as those used in BMW M-series vehicles, are designed to suppress mid-range frequencies without compromising exhaust flow.
• Straight-Pipe or Header-Back Systems: Replacing the entire muffler with a straight pipe or header-back system eliminates backpressure almost entirely, leading to dramatic power gains but at the expense of noise and emissions compliance. A Ford F-150 with a 5.0L Coyote engine saw a 20–25 HP increase when fitted with a straight-pipe system, though this modification is illegal in most regions without a muffler deletion exemption.
• Variable Geometry Mufflers: Used in performance applications like the Nissan GT-R and Porsche 911, these systems dynamically adjust exhaust flow to optimize power across the RPM band. For instance, the GT-R’s "sport mode" muffler setting reduces backpressure at high RPMs for track use, while the "comfort mode" restricts flow for quieter street driving.
• Ceramic-Coated or High-Temperature Mufflers: Materials like Inconel or ceramic coatings improve heat dissipation and reduce thermal stress, indirectly enhancing engine performance by maintaining optimal exhaust gas temperatures. In a Chevrolet Corvette Z06, upgrading to a ceramic-coated muffler system improved high-RPM stability by 5% while reducing heat soak into the cabin.

Real-World Case Studies in Muffler Upgrades

The impact of muffler modifications varies significantly by vehicle type, engine configuration, and driving conditions. Below are documented examples from muscle cars, trucks, and performance vehicles:


Vehicle/Engine	Modification	Performance Gain	Exhaust Note Change	Legal/Safety Considerations
Ford Mustang GT 5.0L Coyote	Flowmaster American Thunder Muffler (replaces stock)	+12 HP, +10 lb-ft torque (Dyno-proven)	Deeper, more aggressive tone; reduced high-frequency harshness	Compliant with U.S. noise laws (typically <92 dB at 50 ft)
Chevrolet Silverado 1500 6.2L V8 (L5P)	Borla Cat-Back Exhaust with Resonator	+5 HP, +8 lb-ft torque (Real-world A/F ratio improvements)	Smoother, more linear exhaust note; reduced drone	Compliant with EPA emissions; no noise violations reported
Dodge Challenger SRT Hellcat 6.2L Supercharged V8	Custom Fabricated "Glasspack" Muffler (baffle removal)	+18 HP (with tune), minimal torque loss	Extremely loud (<100 dB at idle); high-pitched scream at WOT	Illegal in most U.S. states without exemption; requires "muffler deletion" paperwork
Toyota Tacoma TRD Pro 4.0L V6	Walkerville Muffler (straight-through design)	+3 HP, +2 lb-ft torque (Minimal gain due to turbo lag)	Louder, more aggressive; loss of mid-range rumble	Compliant with noise laws but may fail emissions in some regions
Porsche 911 Turbo S 3.8L Twin-Turbo Flat-6	Bose Exhaust System (OEM+ with tuned resonators)	+5 HP (with ECU remap), improved spool time	More refined, less turbo lag; reduced mid-frequency growl	Compliant with EU and U.S. emissions; noise levels within legal limits

Common Misconceptions and Engineering Corrections

Muffler modifications are often misunderstood, leading to suboptimal choices or legal complications. Below are prevalent misconceptions and their technical refutations:


"Bigger mufflers always mean more power." Correction: Muffler size alone does not determine performance. A larger muffler with excessive internal baffling may create more backpressure than a smaller, high-flow unit. For example, a 4-inch diameter muffler with straight-through flow will outperform a 6-inch muffler with labyrinthine chambers, even if the latter is physically larger. Power gains come from reduced backpressure, not sheer volume.

"Removing the muffler will double my horsepower." Correction: While a straight pipe eliminates backpressure, the actual power gain is typically 5




Diagnosis and Common Issues in Muffler Systems

Muffler failures disrupt exhaust system efficiency, degrade vehicle performance, and expose drivers to safety risks such as carbon monoxide leaks or structural collapse. Early detection of muffler-related issues prevents secondary damage to connected components like catalytic converters or oxygen sensors, while also mitigating noise pollution and emissions non-compliance. This section examines prevalent muffler malfunctions, their diagnostic indicators, and the interdependencies between exhaust system elements. A structured inspection protocol and decision-making framework are provided to guide maintenance professionals and vehicle owners in assessing repair viability.


Common Muffler Problems and Associated Symptoms

Muffler degradation typically stems from corrosion, mechanical stress, or manufacturing defects, each manifesting through distinct auditory, visual, and performance-based cues. Below are five frequent issues, categorized by their primary failure mode, along with observable symptoms that correlate with underlying damage.


• Perforated Rust Holes Rust holes develop in thin metal sections due to prolonged exposure to moisture, road salt, and exhaust gases containing sulfuric acid. These perforations compromise sound attenuation and structural integrity.

  Symptoms:

  • Increased exhaust noise, particularly at higher RPMs, resembling a "hissing" or "whistling" tone.
  • Visible corrosion spots or holes when inspecting the muffler surface.
  • Reduced engine efficiency due to backpressure loss, though symptoms may be subtle unless severe.

  Note: Rust holes often initiate on the underside of the muffler, where moisture accumulates.
• Cracked or Separated Chambers Internal chambers within a muffler can fracture due to thermal cycling, vibrations, or physical impacts. This disrupts the sound-dampening baffle system and may expose exhaust gases to the cabin.

  Symptoms:

  • Loud, metallic "clanging" or "pinging" noises during acceleration or over rough terrain.
  • Visible separation lines or bulges along welded seams.
  • Exhaust fumes entering the passenger compartment, detectable by a sweet or pungent odor.

  Note: Chamber cracks are more common in older mufflers or those subjected to off-road use.
• Loose or Broken Mounting Brackets Mufflers rely on rubber or metal mounts to absorb vibrations and maintain alignment. Failure in these components leads to excessive movement, which accelerates wear on exhaust hangers and surrounding hardware.

  Symptoms:

  • Rattling or clattering noises that vary with vehicle speed or road conditions.
  • Visible gaps or misalignment between the muffler and its mounting points.
  • Accelerated corrosion in the exhaust system due to improper alignment causing moisture retention.

  Note: Loose mounts can also damage the catalytic converter if the exhaust system shifts excessively.
• Clogged or Collapsed Internal Baffles Accumulation of soot, rust debris, or foreign objects within the muffler’s internal passages restricts exhaust flow, increasing backpressure and reducing engine performance. Severe cases may lead to baffle collapse from prolonged heat exposure.

  Symptoms:

  • Diminished engine power, particularly during acceleration.
  • A deep, resonant "rumbling" noise, distinct from normal exhaust tones.
  • Visible soot buildup around exhaust outlets or under the vehicle.

  Note: Baffle collapse often occurs in high-performance mufflers or those exposed to extreme temperatures.
• Exhaust Leaks at Seams or Flanges Welded seams or bolted flanges between the muffler and exhaust pipes can degrade over time, leading to leaks that compromise emissions control and increase noise. These leaks often originate from poor initial installation or material fatigue.

  Symptoms:

  High-pitched "squealing" or "hissing" sounds localized to specific sections of the exhaust system.

  Visible exhaust fumes or soot around connection points.

  Check Engine Light (CEL) activation due to elevated oxygen sensor readings from unburned hydrocarbons.

  Note: Leaks at flanges are common in vehicles with aftermarket exhaust modifications.

Step-by-Step Visual Inspection Protocol for Muffler Damage

A systematic inspection minimizes diagnostic errors and ensures safety during assessment. Below is a structured approach, including required tools and precautions, to evaluate muffler condition without disassembly.


• Preparation and Safety Measures

  Tools Required:

  • Jack and jack stands (or vehicle lift) to elevate the vehicle safely.
  • Flashlight with a narrow beam for inspecting hard-to-reach areas.
  • Wire brush or sandpaper (80–120 grit) to clean rust and debris from surfaces.
  • Magnifying glass for detecting fine cracks or corrosion.
  • Measuring tape to assess muffler alignment and mounting integrity.
  • Gloves and safety glasses to protect against sharp edges and exhaust heat.

  Safety Precautions:

  • Ensure the engine is completely cool (at least 2 hours after shutdown) to avoid burns from residual heat.
  • Work in a well-ventilated area; exhaust fumes contain carbon monoxide.
  • Avoid leaning over the exhaust system while the engine is running or recently operated.
  • Use a fire extinguisher if inspecting near hot components.

• External Surface Inspection Clean the muffler surface thoroughly to remove dirt and soot. Examine the following areas:
  • Corrosion and Perforations: Focus on the underside, rear chamber, and areas near welds. Use a flashlight at a 45° angle to detect pinholes.
  • Weld Seams: Check for cracks, bulges, or separation along longitudinal and transverse welds. Tap lightly with a tool—hollow sounds indicate internal damage.
  • Mounting Points: Inspect rubber mounts for tears, hardening, or detachment. Verify metal brackets for rust or deformation.
  • Exhaust Outlets: Look for soot accumulation or discoloration, which may indicate internal blockages.
• Functional and Auditory Assessment

  Procedure:

  • Start the engine and listen for abnormal noises at idle and under acceleration.
  • Drive the vehicle at varying speeds (20–60 mph) to detect rattling or excessive vibration.
  • Use a stethoscope (or improvised tool) to pinpoint noise sources by placing it against the muffler surface.

  Key Indicators:

  • Consistent hissing suggests perforations or leaks.
  • Intermittent clanging points to loose internal components.
  • Deep rumbling may indicate baffle collapse or severe clogging.

• Internal Inspection (Advanced) If external signs are inconclusive, remove the muffler (with proper support) and inspect internal chambers using:
  • A borescope or flexible camera to visualize baffle integrity and passage blockages.
  • Compressed air to clear debris and assess airflow resistance.
  Note: This step requires disassembly and is typically performed by professionals.

Relationship Between Muffler Failure and Exhaust System Components

Historical Evolution and Future Trends in Muffler Technology

The development of muffler technology reflects broader advancements in automotive engineering, regulatory demands, and material science. From rudimentary noise-dampening solutions in the early 20th century to sophisticated acoustic and emissions-compliant systems today, mufflers have undergone significant transformations. This evolution has been driven by legislative pressures, performance enhancements, and the shift toward electrification, reshaping both design philosophies and manufacturing processes.

Early automotive mufflers emerged as a response to the loud, unregulated exhaust noise of internal combustion engines (ICEs), particularly in the 1900s. Their primary function was to mitigate the harsh acoustic output of primitive engines, often using simple perforated pipes or basic expansion chambers. The introduction of stainless steel in the 1930s marked a pivotal milestone, offering corrosion resistance and durability, which became essential as vehicles operated in diverse environmental conditions. Subsequent decades saw mufflers integrate catalytic converters in the 1970s to address emissions regulations, fundamentally altering their construction to balance noise reduction with pollutant control.


Key Milestones in Muffler Development

The progression of muffler technology can be segmented into distinct eras, each characterized by technological breakthroughs and regulatory influences.


1. Early 1900s–1920s: Basic Noise Suppression
   The first mufflers were little more than cylindrical chambers or baffled pipes, often made from cast iron or mild steel. These designs relied on passive sound absorption through reflection and friction within the exhaust gases. The 1910s introduction of the "Horn-type" muffler, featuring concentric tubes and chambers, improved efficiency but remained rudimentary by modern standards. Example: Early Ford Model T mufflers used simple expansion chambers with minimal acoustic treatment, prioritizing cost over performance.
2. 1930s–1950s: Stainless Steel and Durability
   The adoption of stainless steel in the 1930s revolutionized muffler longevity, particularly for high-performance and luxury vehicles. This material’s resistance to rust and high-temperature degradation allowed for more complex internal geometries, such as reverse-flow designs. Example: Chrysler’s "PowerFlite" mufflers in the 1950s incorporated stainless steel baffles to enhance durability while maintaining a sleek aesthetic, aligning with the era’s emphasis on both performance and style.
3. 1970s–1990s: Emissions Compliance and Catalytic Integration
   The Clean Air Act (1970) in the U.S. and similar global regulations forced automakers to integrate catalytic converters into exhaust systems. Mufflers evolved to accommodate these components, often featuring dual-chamber designs to separate catalytic reactions from noise suppression. Example: The 1975 Chevrolet Corvette’s exhaust system combined a catalytic converter with a stainless steel muffler, marking a shift toward emissions-first engineering.
4. 2000s–Present: Hybridization, Smart Systems, and Lightweight Materials
   The rise of hybrid and electric vehicles (EVs) introduced new challenges, as ICEs in hybrids require mufflers optimized for intermittent operation, while EVs eliminate the need for traditional exhaust systems entirely. Concurrently, advancements in materials—such as titanium and composite fibers—reduced weight without compromising strength. Example: Tesla’s Model S (2012) initially used a "silent" exhaust system with no muffler, while hybrid vehicles like the Toyota Prius employ compact, high-efficiency mufflers to manage both noise and emissions during ICE operation.

Regulatory Influences on Muffler Design

Legislative frameworks have consistently shaped muffler technology, often acting as catalysts for innovation. Emissions standards, noise ordinances, and safety regulations have dictated material choices, acoustic performance thresholds, and structural designs.


"Regulations do not merely restrict muffler development; they redefine its possibilities."
— Adapted from SAE International’s emissions technology reports (2020).

Key regulatory impacts include:

1. Emissions Regulations (1970s–Present)
   The introduction of Euro Emissions Standards (Euro 1–7) and U.S. EPA Tier 1–3 forced automakers to integrate catalytic converters and particulate filters into muffler systems. This led to the development of close-coupled mufflers, positioned near the engine to maximize catalyst efficiency, and underfloor mufflers to optimize space for emissions components. Example: Diesel vehicles in Europe now feature Diesel Particulate Filters (DPFs) integrated into muffler assemblies, requiring advanced heat-resistant materials like silicon carbide.
2. Noise Pollution Laws (1960s–1990s)
   Municipal noise ordinances, such as the U.S. Noise Control Act (1972), set maximum decibel limits for vehicles, prompting automakers to adopt multi-chamber mufflers with tuned resonators. Example: Japanese manufacturers in the 1980s developed 4-into-1 exhaust systems with precision-engineered mufflers to meet strict urban noise regulations while enhancing engine performance.
3. Safety and Durability Standards (2000s–Present)
   Crashworthiness regulations (e.g., FMVSS 225 in the U.S.) required mufflers to withstand impact without releasing harmful debris. This led to the use of crushable materials in mounting brackets and reinforced stainless steel in high-stress areas. Example: Modern SUVs like the Jeep Wrangler feature detachable muffler systems that comply with rollover safety standards while maintaining off-road capability.

Vintage vs. Contemporary Mufflers: A Comparative Analysis

The contrast between classic and modern mufflers reveals shifts in priorities—from simplicity and durability to emissions compliance and acoustic precision. While vintage mufflers prioritized raw sound and longevity, contemporary designs emphasize efficiency, regulatory adherence, and integration with advanced powertrains.


Aspect	Vintage Mufflers (1950s–1970s)	Contemporary Mufflers (2010s–Present)
Primary Materials	Cast iron (early models) Stainless steel (1930s onward, e.g., Ford Thunderbird) Minimal use of gaskets; reliance on welding	High-grade stainless steel (e.g., 304/316) Titanium and aluminum alloys (for weight reduction) Advanced gasket materials (e.g., graphite-coated)
Acoustic Design	Simple expansion chambers or reverse-flow designs Emphasis on "deep" exhaust note (e.g., Chevrolet 350 V8) Limited tuning for specific frequency ranges	Multi-chamber designs with tuned resonators Digital acoustic modeling for targeted noise reduction Integration with engine control units (ECUs) for adaptive sound
Emissions Compliance	No catalytic converters; minimal emissions treatment Compliance with loose pre-1970 standards (e.g., U.S. "smog pump" loopholes)	Integrated catalytic converters and particulate filters Adaptive exhaust systems (e.g., BMW’s "Acoustic Valve") Compliance with Euro 7 and Tier 4 standards
Manufacturing Techniques	Hand-formed baffles and chambers Limited use of CNC machining Assembly via riveting or basic welding	Precision CN The muffler exemplifies how engineering precision meets practical necessity, transforming chaotic exhaust gases into controlled, efficient outputs. Its design—whether in a vintage muscle car’s deep-throated exhaust or a silent electric vehicle’s hybrid system—reflects a balance of performance, legality, and environmental responsibility. As emissions regulations tighten and electric propulsion redefines exhaust needs, mufflers continue to adapt, proving their enduring relevance. From diagnosing rust-induced failures to optimizing aftermarket upgrades, mastering muffler fundamentals ensures both compliance and performance, underscoring its status as a cornerstone of automotive engineering. FAQ What does a muffler delete mean, and what does it do? A muffler delete is the removal of a vehicle’s exhaust muffler (and sometimes the catalytic converter) to increase engine noise and improve performance. It’s often done for a louder exhaust sound or slightly better airflow, but it’s illegal in many areas and can damage the exhaust system over time. What is the purpose of a muffler on a car? A car muffler reduces the noise produced by the engine’s exhaust system while allowing gases to exit safely. It uses sound-absorbing materials and chambers to dampen loud exhaust pulses, making vehicles quieter for passengers and neighbors. How does a muffler delete work on a car, and what are its effects? A muffler delete removes the muffler (and sometimes other components like resonators or cats) to let exhaust gases pass straight through the tailpipe. This makes the engine sound louder and can improve slight horsepower, but it also increases noise pollution and may violate emissions laws. What is a muffler in clothing, and how is it used? A "muffler" in clothing refers to a long, cylindrical sleeve cover worn over the hand and forearm, often made of fur or fabric. It’s designed to keep hands warm in cold weather, traditionally used in winter fashion or historical garments like Victorian-era outerwear. What is a muffler bearing, and where is it found? A muffler bearing is a type of wheel bearing used in some vehicles, particularly older or heavy-duty trucks, to support the weight of large exhaust systems. It’s found in the rear axle assembly, helping the muffler and exhaust hang without stressing the vehicle’s frame. What is a muffler towel, and how is it different from a regular towel? A muffler towel is a specialized, high-heat-resistant towel used by mechanics to protect hands and parts from hot engine components like exhaust manifolds or mufflers. Unlike regular towels, it’s made of heat-resistant materials (like silicone or Kevlar) to handle extreme temperatures. automotive-exhaust-systems emissions-compliance engine-performance muffler-design noise-reduction-technology Leave a Comment Name Comment Post Comment Comments are moderated before appearing. The data you submit is processed according to the Privacy Policy of Voltefac.
